Bitumen Emulsion Cationic

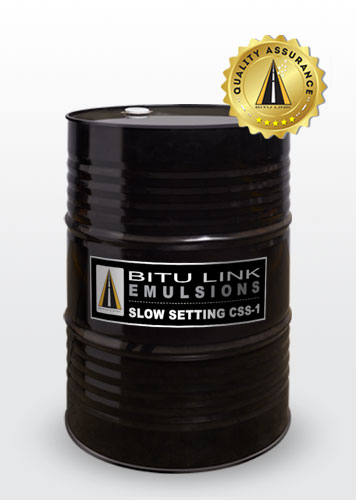

Slow Setting CSS-1 and CSS-2
Bitulink Emulsion CSS 1 is specially designed oil based bitumen emulsion with low viscosity, extended setting time and stability with cement that makes it an ideal product for Prime Coat application. It is black in colour and is a free flowing liquid at ambient temperature. BITULINK Emulsion SS1 is manufactured strictly as per ASTM D 2397.
Properties:
1. It comes in liquid form
2. It is chocolate brown in colour.
Advantages:
• Superior penetration into miniature pores of sub based.
• Low temperature curing allows the binder to penetrate into sub base.
• Enhances structural strength by strongly binding loose aggregates.
• Easy to apply and hassle free.
• Prevent Revealing and Rutting.
• Environment Friendly
Applications & Uses:
Bitulink Emulsion SS1 is ideally suited for Prime Coating on WMM/WBM surfaces and it has the ability to penetrate 8-10 mm deep into low porous WMM surface.
Bitulink Bitumen Emulsion CSS1 ASTM is designed for use in slurry seals and for cold storable mixtures for patching. They are designed for soil stabilisation and also suitable for use with cold recycling. These emulsions are tailor-made as per the quality of aggregates and local site conditions.
| Applications | Quantity in kg / 10sqm area |
|---|---|
| Fog Seal | 5 to 10 |
| Slurry Seal | 12 to 15 |
| Premix Seal Coat | 2.5 to 3 |
| Fog spray | 5 to 10 |
| Slurry seal | 10 to 12 |
| Premix seal coat | 10 to 12 |
Packing
CRS1 is available in
• Bulk
• RC Drums 200Kg
• MS Drums 200Kg
• HDPE Drums 200Kg
Specifications
| PROPERTIES | CSS-1 |
|---|---|
| Tests on Emulsion | min-max |
| Viscosity by Saybolt Furol viscometer @25°C, Seconds | 20-100 |
| Residue on 600 Mic IS Sieve(% by Mass) | 0.05 max |
| Coagulation Of Emulsion at Low temp | Nil |
| Storage Stability after 24h, % | Max 2 |
| Miscibility with water | No Coagulation |
| Residue by Distillation/ Evaporation % | 57 min |
| Particle Charge | (+) |
| Tests on Residue | |
| Penetration,@ 25°C/100g/5Sec dmm | 80-150 |
| Solubility in Trichloroethylene, % | 98 min |
| Ductility, 27°C, cm | 50 min |
Precautions to be taken to ensure best results while using emulsion:
